ASTM A249 / A269 - 316 / 316L Welded Tubes

Stainless Steel 316 Welded Tubes, DIN 1.4401 Stainless Steel Welded Tubes, SS 316L Welded Tube, DIN 1.4436 SS Welded Tubes, Stainless Steel UNS S31603 Welded Tubing Supplier, SS 316 Welded Tubes Exporters, Stainless Steel UNS S31600 Welded Tubes, WERKSTOFF NR. 1.4404 / 1.4435 Welded Tubing Manufacturer in India.

SS 316L Cold Drawn Welded Tubings, SS 316 Welded coil tubing, Stainless Steel 316L Welded Tubes, ASTM A269 Stainless Steel TP 316 Welded Tube, ASME SA 249 TP 316L Heat-Exchanger Welded Tube, Stainless Steel 316/316L Condenser Welded Tubing, SUS 316/316L Welded Tubes, Stainless Steel 316 Instrumentation Welded Tubes Supplier.

Sanghvi Engineering & Trading are manufacturers and traders of 316/316L Stainless Steel Welded Tubes. We have a top of the line inventory where our skilled labours produce outstanding products. 316L Welded Tubes low amounts of carbon and are mixed with aluminium. Similarly, 316 SS Welded Tubes are molybdenum containing austenitic steel. The molybdenum in SS 316 gives better resistance to general corrosion. Grade 316L Welded Tubes are resistant to pitting and crevice corrosion in chloride conditions. Likewise, in chloride conditions these SS 316 Welded Tubes execute high imperviousness to crevice corrosion, as well as pitting.

Stainless Steel 316 Welded Tubes Stainless Steel 316L Welded Tubing's
Stainless Steel Welded Tubes

Send Enquiry

Our ASTM SA269 GR.TP 316L Welded Tubes bear creep and stress-rupture resistant properties. Our UNS S31600 Welded Tubes combine properties such as welding and formability, making them usable in many industries. The austenitic structure of these ASTM SA249 GR.TP 316 Welded Tubes gives them great durability even at cryogenic temperature applications. Our products are highly demanded for their quality and outstanding reliability.

316 SS Hot Finished Welded Tubing, SS 316 thin wall Welded Tubing, Austenitic Stainless Steel 316 Welded Tubes Stockists, 316L SS Welded Superheater Tubes, Stainless Steel 316 Welded Boiler Tube Stockholders in Mumbai., SS 316L Welded Polished Stainless tube, ASTM A269 SS 316L Square Welded Tube

Content

Welded Stainless Steel 316/316L Tube Specification

Specifications : ASTM A249, A269 / ASME SA 249, SA 269

Size : 1/8" NB to 36" NB, 1/4" OD to 36" OD sizes stainless steel welded tubes also available

Thickness Range :  1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10

Type : As Welded / ERW

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tubes

Length : Up to 6 meters, custom cut lengths / Single Random, Double Random & Required Length

End : Plain End, Beveled End, Treaded

End Protection : Plastic Caps

Finish : No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Welded Tubes

Delivery Condition : Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived, As Welded, Welded & Externally Polished, Welded Annealed & Pickled, Welded Cold Drawn Annealed & Pickled, Welded Cold Drawn Annealed Pickled & Externally Polished

Test Reports : PMI Test Reports, EN 10204 3.1 Certificate, NABL Approved Lab Report on Chemical and Mechanical Properties, NDT or Other Test Reports, 100% X-Ray Welding Reports

Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests

Specials : Sizes and Specifications other than above can be manufactured on request

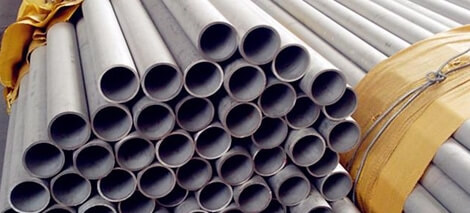

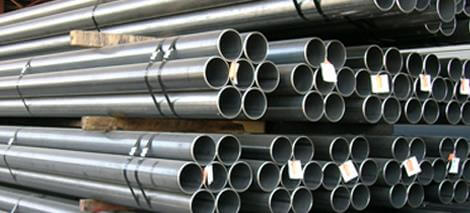

316/316L Stainless Steel Welded Round Tubing

SS 316/316L Welded Round Tubes

316/316L Stainless Steel Welded Square Tubing

SS 316/316L Welded Square Tube

316/316L Stainless Steel Welded Rectangular Tubing

SS 316/316L Welded Rectangular Tube

Contact Sanghvi Engineering & Trading today for a best offer & competitive quotation Of Grade 316, 316L Stainless Steel Welded Tubes, Tubings.
Email: [email protected]

Equivalent Stainless Steel of Grades 316/316L SS Welded Tube

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Chemical Composition of ASTM A249, A269 316/316L Welded Tube

Grade C Mn Si P S Cr Mo Ni Fe
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00 67.845 min
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

Mechanical Properties of ASME SA 249, SA 269 Stainless Steel 316/316L Tubing

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

SS 316/316L Welded Tubes Origin of Materials

Sumitomo Make SS 316/316L Welded Tube

Sumitomo Make Stainless Steel 316/316L Welded Tubes/Tubing

Ratnamani Make SS 316/316L Welded Tube

Ratnamani Make Stainless Steel 316/316L Welded Tubes/Tubing

Kobe Steel Make Stainless Steel 316/316L Welded Tube

Kobe Steel Make Stainless Steel 316/316L Welded Tubes/Tubing

Sandvik Make SS 316/316L Welded Tube

Sandvik Make Stainless Steel 316/316L Welded Tubes/Tubing

Tubacex Make SS 316/316L Welded Tube

Tubacex Make Stainless Steel 316/316L Welded Tubes/Tubing

Schoeller Bleckmann Make SS 316/316L Welded Tube

Schoeller Bleckmann Make SS 316/316L Welded Tubes/Tubing

Sanyo Special Steel Make SS 316/316L Welded Tube

Sanyo Steel Make Stainless Steel 316/316L Welded Tubes/Tubing

JFE Steel Corporation Make SS 316/316L Welded Tube

JFE Steel Corporation Make SS 316/316L Welded Tubes/Tubing

The Following Processing can be performed on A249, A269 TP316/316L SS Welded Tube
 Stainless Steel 316/316L Welded Tube Processing

Structural Cutting

 Products cut include tube, tubing, Square tubes, Rectangular tubes, round tubes  Thickness range is 1/16″ to 28″ NB diameter

Tubular Cutting

 Products cut include Ornamental Tube, Tubing and Hollow Section.  Thickness range is 1/16″ to 28″ NB diameter

Production Cutting

 Sanghvi Engineering & Trading can provide production cutting for product diameters up to 4″.  We utilize Amada Production Equipment to achieve these precision cuts with tight tolerances.

Structural Polishing

 Products polished included all tubular products, with OD & ID polishing available
Application Industries of SS S31600/ S31603 Welded Tubes and Tubings
  • »  316/316L SS Welded Tube used in Energy industries
  • »  316/316L SS Welded Tube used in Petrochemicals
  • »  316/316L SS Welded Tube used in Ship Building
  • »  316/316L SS Welded Tube used in Oil & Gas Industry
  • »  316/316L SS Welded Tube used in Pulp and Paper
  • »  316/316L SS Welded Tube used in Water treatment facilities
  • »  316/316L SS Welded Tube used in Oil and Gas Processing
  • »  316/316L SS Welded Tube used in Pharmaceuticals
  • »  316/316L SS Welded Tube used in Construction
  • »  316/316L SS Welded Tube used in Textile Machinery
  • »  316/316L SS Welded Tube used in Power Plants
  • »  316/316L SS Welded Tube used in Dairy
  • »  316/316L SS Welded Tube used in Food Processing
  • »  316/316L SS Welded Tube used in Chemicals industries
ASTM A249 Stainless Steel 316/316L Welded Tube Test Certificates
  • »  Manufacturer Test Certificate
  • »  IBR Test Certificate (Form III-D)
  • »  Laboratory Test Certificate from Govt. Approved Lab.
  • »  Under Third Party Inspection with Excise Gate Pass to avail Modvat benefit.
ASTM A269 316/316L Stainless Steel Welded Tube Price List
  • 316/316L Stainless Steel Bright Welded Tubing
    US $2.2-8 / Kilogram (FOB Price)
  • Buy Top Quality Stainless Steel 316 & 316L Welded Tubes
    US $2100-3587 (FOB Price)
  • TP 316/316L Welded Tube Competitive Price
    US $698-1980 / Ton (FOB Price)
  • ASTM A269 /SA 269 TP316, TP316L SS Welded Tubes
    US $2000-13600 Ton (FOB Price)
  • Global supplier of 316/316L SS welded precision tubes
    US $1.5-9 / Kilogram (FOB Price)
  • High-pressure 316/316L Steel Welded Tubing
    US $5901-9801 Metric Ton (FOB Price)
  • 316, 316L Super Austenitic Stainless Steel Welded Tube
    US $3981-7900 Ton (FOB Price)
  • ASTM A249/ SA 249 Stainless Welded Tubes
    US $25-300/ Kilogram (FOB Price)
  • 316/316L SS Polished Welded Tubes, Tubings
    US $1500-5200 Ton (FOB Price)
  • Hot offer on SS 316 /316L cold Rolled Welded Tubing
    US $10100-39000 Metric Ton (FOB Price)
  • 316/316L Welded Hot Finished Tubes
    US $1-100 / Pieces
